TGA2623-CP - GaN Power Amplifier

TriQuint Semiconductor

📥 Download Datasheet

TGA2623-CP Datasheet Preview — Preview of TGA2623-CP PDF

Datasheet Details

Part number: TGA2623-CP
Manufacturer: TriQuint Semiconductor
File Size: 557.29 KB
Datasheet: TGA2623-CP-TriQuintSemiconductor.pdf
Description: GaN Power Amplifier

TGA2623-CP Product details

Description

TriQuint’s TGA2623-CP is a packaged, high power Xband amplifier fabricated on TriQuint’s TQGaN25 0.25 um GaN on SiC production process. 11 GHz, the TGA2623-CP achieves 32 W saturated output power, a power-added efficiency of greater than 41 %, and power gain of 27 dB.

Features

Frequency Range: 10.
11 GHz.
PSAT: 45 dBm @ PIN = 18 dBm.
PAE: >41% @ PIN = 18 dBm.
Power Gain: 27 dB @ PIN = 18 dBm.
Bias: VD = 28 V, IDQ = 290 mA, VG = -2.7 V Typical (Pulsed VD: PW = 100 us and DC = 10%).
Package Dimensions: 15.2 x 15.2 x 3.5 mm.

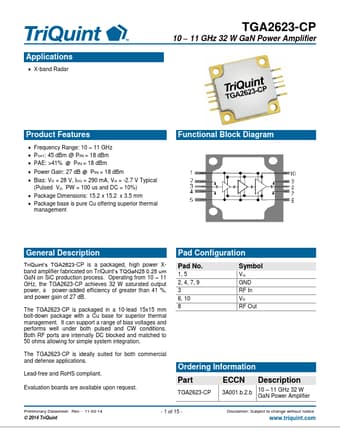

Package base is pure Cu offering superior thermal management Functional Block Diagram General.
