TGA2620-SM

Driver Amplifier

TGA2620-SM Features

* Frequency Range: 16

* 18GHz

* PSAT: 18.5dBm

* P1dB: 16.5dBm

* Small Signal Gain: 20dB

* Input Return Loss: 16dB

* Output Return Loss: 25dB

* Bias: VD = 6V, IDQ = 30mA, VG = -0.6V Typical

* Package Dimensions: 3 x 3 x 0.53 mm QFN 3x3 mm 14L Functional Block

TGA2620-SM General Description

TriQuint’s TGA2620-SM is a package Ku-band MMIC driver amplifier fabricated on TriQuint’s 0.15um GaAs pHEMT production process. Operating from 16-18GHz, the TGA2620-SM provides more than 18.5dBm saturated output power, 16.5dBm P1dB and 20dB small signal gain. Fully matched to 50 ohms with integrated.

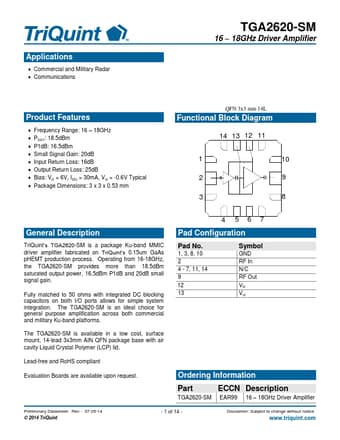

TGA2620-SM Datasheet (565.88 KB)

Preview of TGA2620-SM PDF

Datasheet Details

Part number:

TGA2620-SM

Manufacturer:

TriQuint Semiconductor

File Size:

565.88 KB

Description:

Driver amplifier.
