TGA2621-SM Datasheet - TriQuint Semiconductor

GaAs Power Amplifier

TGA2621-SM Features

* Frequency Range: 16

* 18.5 GHz

* PSAT: >30 dBm at Pin = 10 dBm

* PAE: >23 % at Pin = 10 dBm

* Small Signal Gain: >24.5 dB

* Input Return Loss: > 10 dB

* Bias: VD = 6 V, IDQ = 500 mA, VG = -0.6 V Typical

* Package Dimensions: 5.0 x 5.0 x 1.45 mm Functional Block

TGA2621-SM General Description

TriQuint’s TGA2621-SM is a packaged Ku-band Power Amplifier fabricated on TriQuint’s TQPHT15 0.15 μm GaAs pHEMT process. The TGA2621-SM operates from 16 to 18.5 GHz and typically provides greater than 1W of saturated output power with greater than 23% PAE and greater than 24.5 dB of small signal gai.

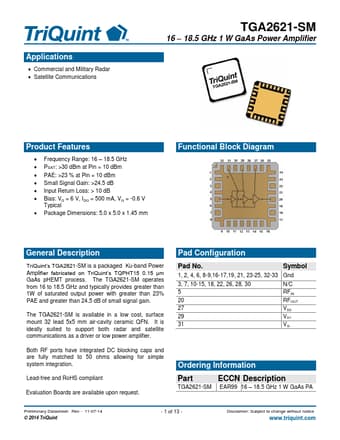

TGA2621-SM Datasheet (608.30 KB)

Preview of TGA2621-SM PDF

Datasheet Details

Part number:

TGA2621-SM

Manufacturer:

TriQuint Semiconductor

File Size:

608.30 KB

Description:

Gaas power amplifier.
Applications Commercial and Military Radar Satellite Communications TGA2621-SM 16 18.5 GHz 1 W GaAs Power Amplifier Product Fe.
