TGA2621 Datasheet - TriQuint Semiconductor

GaAs Power Amplifier

TGA2621 Features

* Frequency Range: 16 - 18 GHz

* Psat: 30.5 dBm at Pin = 10 dBm

* PAE: 28 % at Pin = 10 dBm

* Small Signal Gain: 26.5 dB

* Input Return Loss: > 13 dB

* Bias: VD = 6 V, IDQ = 400 mA, VG = -0.6 V Typical

* Chip Dimensions: 2.0 x 2.5 x 0.1 mm Functional Block Diagram 2 34 1

TGA2621 General Description

TriQuint’s TGA2621 is a Ku-band Power Amplifier fabricated on TriQuint’s TQPHT15 0.15 μm GaAs pHEMT process. The TGA2621 operates from 16 to 18 GHz and typically provides 1 W of saturated output power with an efficiency of 28% PAE and 26.5 dB of small signal gain. The TGA2621 is well suited to suppo.

TGA2621 Datasheet (419.07 KB)

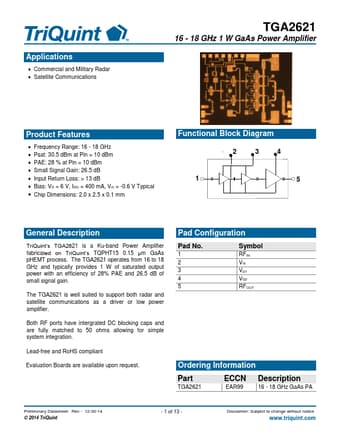

TGA2621 Datasheet Preview — Preview of TGA2621 PDF
