Description

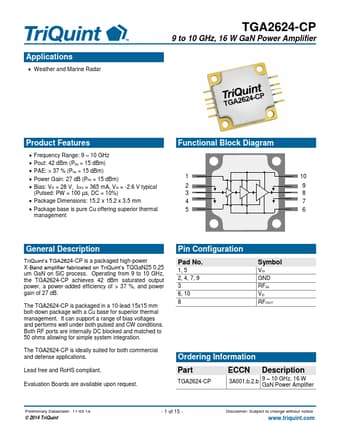

TriQuint’s TGA2624-CP is a packaged high-power X-Band amplifier fabricated on TriQuint’s TQGaN25 0.25 um GaN on SiC process.

Features

Frequency Range: 9.
10 GHz.
Pout: 42 dBm (PIN = 15 dBm).
PAE: > 37 % (PIN = 15 dBm).
Power Gain: 27 dB (PIN = 15 dBm).
Bias: VD = 28 V, IDQ = 365 mA, VG = -2.6 V typical (Pulsed: PW = 100 µs, DC = 10%).
Package Dimensions: 15.2 x 15.2 x 3.5 mm.
Package base is pure Cu offering superior thermal management Functional Block Diagram 1 2 3 4 5 10 9 8 7 6 General.
