TGA2624 Datasheet - TriQuint Semiconductor

GaN Power Amplifier

TGA2624 Features

* Frequency Range: 9

* 10GHz

* PSAT: 42.5dBm @ PIN = 15dBm

* P1dB: >38dBm

* PAE: >40% @ PIN = 15dBm

* Large Signal Gain: 27.5dB

* Small Signal Gain: >35dB

* Return Loss: >11dB

* Bias: VD = 28V, IDQ = 365mA, VG = -2.7V Typical

* Pulsed VD: PW = 100us and DC

TGA2624 General Description

TriQuint’s TGA2624 is an x-band, high power MMIC amplifier fabricated on TriQuint’s production 0.25um GaN on SiC process. The TGA2624 operates from 9 * 10GHz and provides a superior combination of power, gain and efficiency. Achieving 18W of saturated output power with 27.5dB of large signal.

TGA2624 Datasheet (559.03 KB)

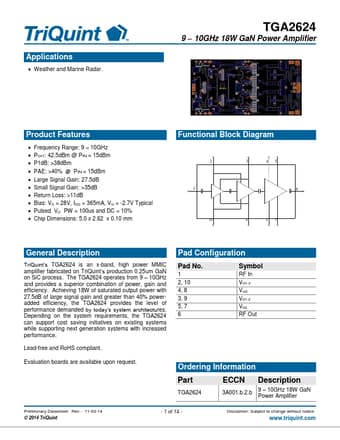

TGA2624 Datasheet Preview — Preview of TGA2624 PDF

Datasheet Details

Part number:

TGA2624

Manufacturer:

TriQuint Semiconductor

File Size:

559.03 KB

Description:

Gan power amplifier.
