1SS106 - Silicon Schottky Barrier Diode

1SS106 Description

1SS106 Silicon Schottky Barrier Diode for Various Detector, High Speed Switching REJ03G0125-0200Z (Previous: ADE-208-153A) Rev.2.00 Oct.23.2003 Featur.

1SS106 Features

* Detection efficiency is very good.
* Small temperature coefficient.
* High reliability with glass seal. . Ordering Information Type No. 1SS106 Cathode White 2nd band White Mark H Package Code DO-35 Pin Arrangement H 12 2nd band Cathode band 1. Cathode 2. Anode Rev.

📥 Download Datasheet

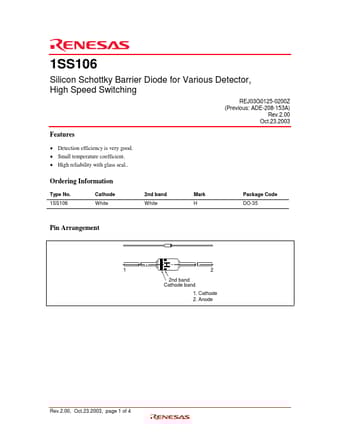

Preview of 1SS106 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS106
Manufacturer
Renesas ↗
File Size
58.36 KB
Datasheet
1SS106-Renesas.pdf
Description
Silicon Schottky Barrier Diode
