STG5682 - Low voltage dual SPDTswitch

ST Microelectronics

📥 Download Datasheet

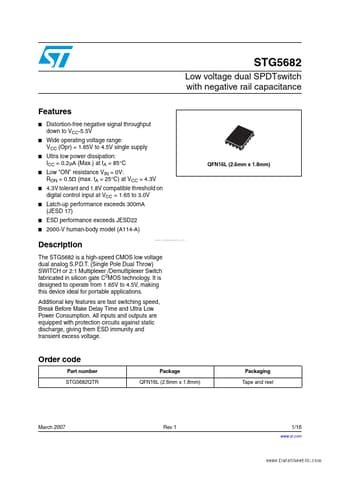

STG5682 Datasheet Preview — Preview of STG5682 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STG5682
Manufacturer	STMicroelectronics ↗
File Size	251.34 KB
Description	Low voltage dual SPDTswitch
Datasheet	STG5682_STMicroelectronics.pdf

STG5682 Product details

Description

The STG5682 is a high-speed CMOS low voltage dual analog S.P.D.T.

Features

Distortion-free negative signal throughput down to VCC-5.5V Wide operating voltage range: VCC (Opr) = 1.65V to 4.5V single supply Ultra low power dissipation: ICC = 0.2µA (Max. ) at tA = 85°C Low "ON" resistance VIN = 0V: RON = 0.5Ω (max. tA = 25°C) at VCC = 4.3V 4.3V tolerant and 1.8V compatible threshold on digital control input at VCC = 1.65 to 3.0V Latch-up performance exceeds 300mA (JESD 17) ESD performance exceeds JESD22 2000-V human-body mod.
