STG5223 Datasheet, Switch, STMicroelectronics

STG5223 Features

  • Switch
  • Ultra low power dissipation: www.DataSheet4U.com ICC = 0.2 μA (max.) at TA= 85
  • °C Low ON resistance:
      – RON = 0.50 Ω (max. TA = 25 °C) at VCC = 4.3

PDF File Details

Part number:

STG5223

Manufacturer:

STMicroelectronics ↗

File Size:

370.44kb

Download:

📄 Datasheet

Description:

Dual spdt switch. The STG5223 is a high-speed CMOS dual analog SPDT (single pole dual throw) switch or dual 2:1 multiplexer/demultiplexer bus switch fa

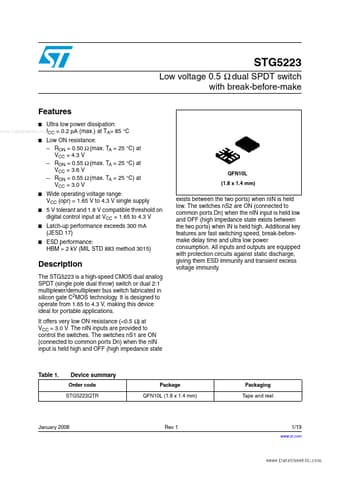

Datasheet Preview: STG5223 📥 Download PDF (370.44kb)
Page 2 of STG5223 Page 3 of STG5223

STG5223 Application

  • Applications It offers very low ON resistance (<0.5 Ω) at VCC = 3.0 V. The nIN inputs are provided to control the switches. The switches nS1 are ON
