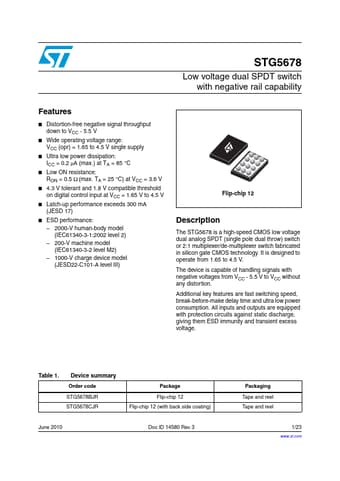

STG5678 - Low voltage dual SPDT switch

STMicroelectronics

STG5678 Datasheet Preview — Preview of STG5678 PDF

Datasheet Details

Part number	STG5678
Manufacturer	STMicroelectronics ↗
File Size	584.35 KB
Description	Low voltage dual SPDT switch
Datasheet	STG5678-STMicroelectronics.pdf

STG5678 Product details

Description

The STG5678 is a high-speed CMOS low voltage dual analog SPDT (single pole dual throw) switch or 2:1 multiplexer/de-multiplexer switch fabricated in silicon gate CMOS technology.

Features

Distortion-free negative signal throughput down to VCC - 5.5 V.
Wide operating voltage range: VCC (opr) = 1.65 to 4.5 V single supply.
Ultra low power dissipation: ICC = 0.2 µA (max. ) at TA = 85 °C.
Low ON resistance: RON = 0.5 Ω (max. TA = 25 °C) at VCC = 3.6 V.
4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 1.65 V to 4.5 V.
Latch-up performance exceeds 300 mA (JESD 17).
ESD performance:.
2000-V human-body model (IEC6.
