STG5123 Datasheet, Switch, STMicroelectronics

STG5123 Features

  • Switch
  • High speed:
      – tPD = 130 ps (typ.) at VCC = 3.0 V
      – tPD = 140 ps (typ.) at VCC = 2.3 V Ultra low power dissipation:
      – ICC = 0.2

PDF File Details

Part number:

STG5123

Manufacturer:

STMicroelectronics ↗

File Size:

391.83kb

Download:

📄 Datasheet

Description:

Low voltage 1 ohm single spdt switch. The STG5123 is a high-speed CMOS low voltage single analog SPDT (single-pole dual-throw) switch or 2:1 multiplexer/demultiplexer swit

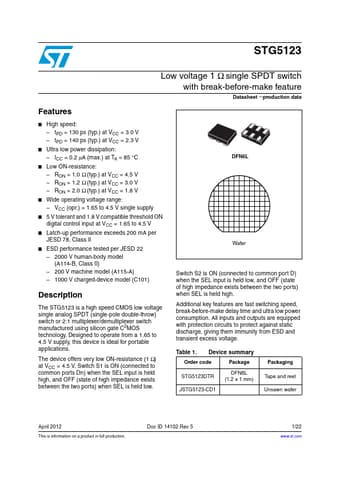

Datasheet Preview: STG5123 📥 Download PDF (391.83kb)
Page 2 of STG5123 Page 3 of STG5123

STG5123 Application

  • Applications The device offers very low ON resistance (1 Ω) at VCC = 4.5 V. The switch S1 is ON (connected to common ports Dn) when the SEL input i
