STG5592

Low voltage high bandwidth quad SPDT switch

STG5592 Features

* Wide operating voltage range:

* VCC (opr) = 1.65 V to 5.5 V single supply

* Low on-resistance:

* Ron(peak) = 2.75 Ω (TA = 25 °C) at VCC = 5 V

* 1.8 V logic compatible

* Fail-safe logic

* Low power dissipation:

* ICC = 0.1 µA

STG5592 General Description

The circuit is a high-speed CMOS low voltage quad analog SPDT (single pole dual throw) switch or 2:1 multiplexer/demultiplexer switch developed with silicon gate CMOS technology. It is designed to operate from 1.65 V to 5.5 V, making this device ideal for portable applications. The nSEL inputs are .

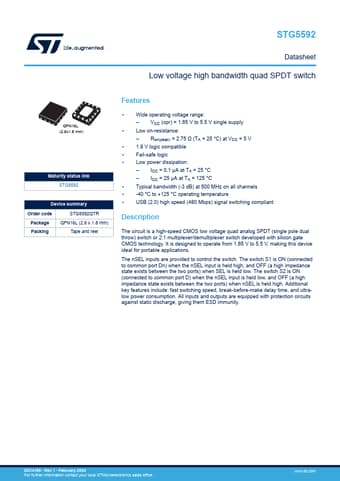

STG5592 Datasheet (2.09 MB)

Preview of STG5592 PDF

Datasheet Details

Part number:

STG5592

Manufacturer:

STMicroelectronics ↗

File Size:

2.09 MB

Description:

Low voltage high bandwidth quad spdt switch.
STG5592 Datasheet Low voltage high bandwidth quad SPDT switch QFN16L (2.6x1.8 mm) Maturity status link STG5592 Device summary Order code STG5592Q.
