STSJ100NHS3LL - N-CHANNEL POWER MOSFET

ST Microelectronics

The STSJ100NHS3LL by ST Microelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

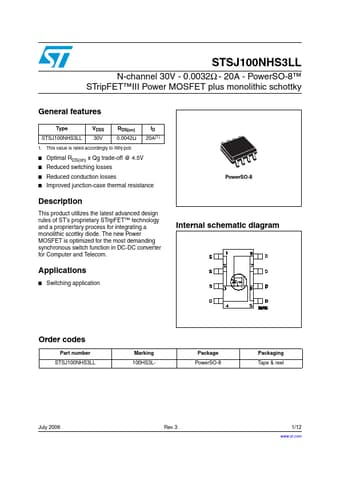

STSJ100NHS3LL N-CHANNEL POWER MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STSJ100NHS3LL** N-CHANNEL POWER MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STSJ100NHS3LL
Manufacturer	STMicroelectronics
File Size	315.37 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STSJ100NHS3LL_STMicroelectronics.pdf
Additional preview pages of the STSJ100NHS3LL datasheet.

STSJ100NHS3LL Product details

Description

This product utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology and a propriertary process for integrating a monolithic scottky diode. Switching application Order codes Part number STSJ100NHS3LL Marking 100HS3LPackage PowerSO-8 Packaging Tape & reel July 2006 Rev 3 1/12 www.st.com 12

Features

Type STSJ100NHS3LL VDSS 30V RDS(on) 0.0042Ω ID 20A(1) 1. This value is rated accordingly to Rthj-pcb.
Optimal RDS(on) x Qg trade-off @ 4.5V Reduced switching losses Reduced conduction losses Improved junction-case thermal resistance PowerSO-8.
