STSJ18NF3LL Datasheet, Mosfet, ST Microelectronics

STSJ18NF3LL Features

  • Mosfet TYPE STSJ18NF3LL
  • STSJ18NF3LL Figure 1:Package RDS(on) <0.019 Ω ID 18 A VDSS 30 V TYPICAL RDS(on) = 0.016 Ω @ 10V TYPICAL Qg = 12.5

PDF File Details

Part number:

STSJ18NF3LL

Manufacturer:

STMicroelectronics ↗

File Size:

242.72kb

Download:

📄 Datasheet

Description:

Low gate charge stripfet ii power mosfet. This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process. This silicon, ho

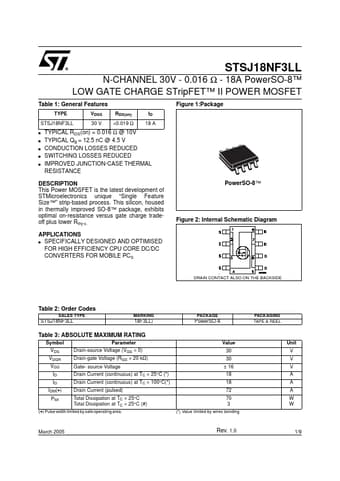

Datasheet Preview: STSJ18NF3LL 📥 Download PDF (242.72kb)
Page 2 of STSJ18NF3LL Page 3 of STSJ18NF3LL

STSJ18NF3LL Application

  • Applications
  • SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS FOR MOBILE PCS Figure 2: Internal Schemati
