STSJ3NM50 N-CHANNEL POWER MOSFET

ST Microelectronics

Description

www.DataSheet4U.com N-CHANNEL 500V - 2.5Ω - 3A PowerSO-8 Zener-Protected MDmesh™ POWER MOSFET TYPE STSJ3NM50 s s s s STSJ3NM50 VDSS 500 V RDS(on) .
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

📥 Download Datasheet

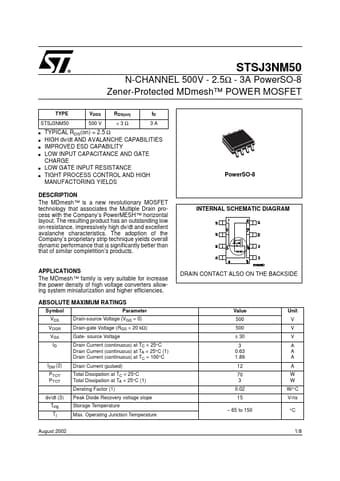

STSJ3NM50 Datasheet Preview — Preview of STSJ3NM50 PDF

Datasheet Specifications

Part number: STSJ3NM50
Manufacturer: STMicroelectronics ↗
File Size: 176.48 KB
Datasheet: STSJ3NM50_STMicroelectronics.pdf
Description: N-CHANNEL POWER MOSFET

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* The MDmesh™ family is very suitable for increase the power density of high voltage converters allowing system miniaturization and higher efficiencies. ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain
