STSJ50NH3LL Datasheet, Mosfet, ST Microelectronics

STSJ50NH3LL Features

  • Mosfet Type STSJ50NH3LL
  • VDSS 30V RDS(on) < 0.0105Ω ID 12A(1) Optimal RDS(on) x Qg trade-off @ 4.5V Reduced switching losses Reduced conduction losse

PDF File Details

Part number:

STSJ50NH3LL

Manufacturer:

STMicroelectronics ↗

File Size:

703.40kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This series utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology, and a propriertary process for integr

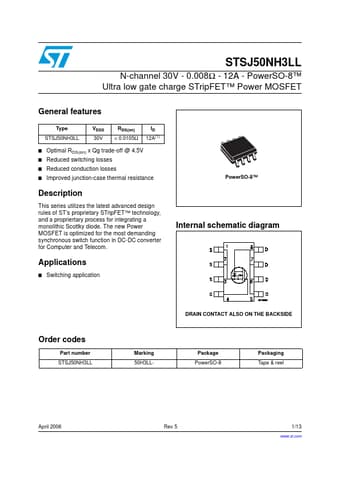

Datasheet Preview: STSJ50NH3LL 📥 Download PDF (703.40kb)
Page 2 of STSJ50NH3LL Page 3 of STSJ50NH3LL

STSJ50NH3LL Application

  • Applications
  • Switching application DRAIN CONTACT ALSO ON THE BACKSIDE Order codes Part number STSJ50NH3LL Marking 50H3LLPackage PowerSO
