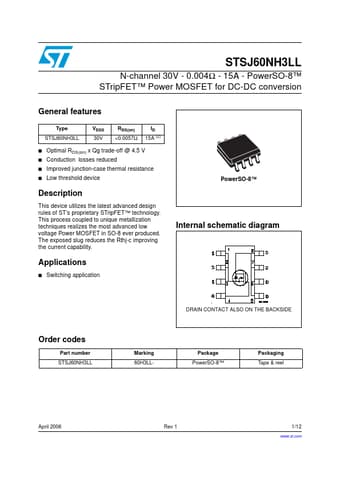

STSJ60NH3LL Datasheet, Mosfet, ST Microelectronics

STSJ60NH3LL Features

• Mosfet Type STSJ60NH3LL
• VDSS 30V RDS(on) <0.0057Ω ID 15A (2) Optimal RDS(on) x Qg trade-off @ 4.5 V Conduction losses reduced Improved junction-case

PDF File Details

Part number:

STSJ60NH3LL

Manufacturer:

STMicroelectronics ↗

File Size:

303.50kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This device utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. This process coupled to unique metall

STSJ60NH3LL Application

• Applications
• Switching application DRAIN CONTACT ALSO ON THE BACKSIDE Order codes Part number STSJ60NH3LL Marking 60H3LLPackage PowerSO
