STF16NM50N Datasheet - STMicroelectronics

N-channel Power MOSFET

STF16NM50N Features

* www.DataSheet4U.com Type VDSS (@Tjmax) 550 V 550 V 550 V 550 V 550 V RDS(on) max 0.26 Ω 0.26 Ω 0.26 Ω 0.26 Ω 0.26 Ω ID 1 3 3 12 STB16NM50N STI16NM50N STF16NM50N STP16NM50N STW16NM50N 15 A 15 A 15 A (1) D²PAK 2 1 3 I²PAK 15 A 15 A 3 1 2 TO-247 3 1 2 1. Limited only by maximum temperature

STF16NM50N General Description

This series of devices is designed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding hi.

STF16NM50N Datasheet (595.30 KB)

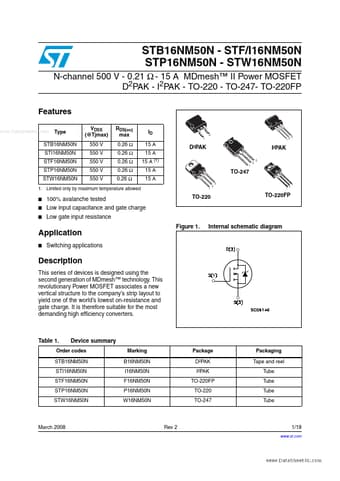

Preview of STF16NM50N PDF

Datasheet Details

Part number:

STF16NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

595.30 KB

Description:

N-channel power mosfet.
STB16NM50N - STF/I16NM50N STP16NM50N - STW16NM50N N-channel 500 V - 0.21 Ω - 15 A MDmesh™ II Power MOSFET D2PAK - I2PAK - TO-220 - TO-247- TO-220FP Fe.
