STGAP4S - Automotive advanced isolated gate driver

STMicroelectronics

📥 Download Datasheet

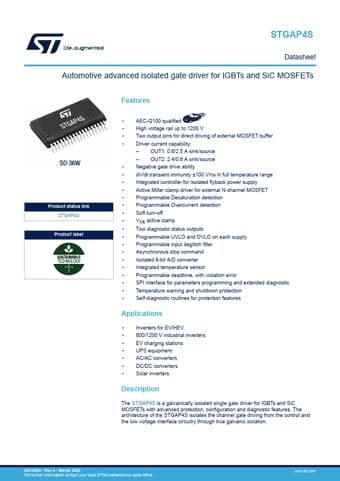

STGAP4S Datasheet Preview — Preview of STGAP4S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGAP4S
Manufacturer	STMicroelectronics ↗
File Size	2.41 MB
Description	Automotive advanced isolated gate driver
Datasheet	STGAP4S-STMicroelectronics.pdf

STGAP4S Product details

Description

The STGAP4S is a galvanically isolated single gate driver for IGBTs and SiC MOSFETs with advanced protection, configuration and diagnostic

Features

AEC-Q100 qualified.
High voltage rail up to 1200 V.
Two output pins for direct driving of external MOSFET buffer.
Driver current capability:.
OUT1: 0.6/2.5 A sink/source.
OUT2: 2.4/0.6 A sink/source.
Negative gate drive ability.
dV/dt transient immunity ±100 V/ns in full temperature range.
Integrated controller for isolated flyback power supply.
Active Miller clamp driver for external N‑channel M.
