STGFW20H65FB Datasheet - STMicroelectronics

IGBT

STGFW20H65FB Features

* Maximum junction temperature: TJ = 175 °C

* High speed switching series

* Minimized tail current

* VCE(sat) = 1.55 V (typ.) @ IC = 20 A

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance Applications

* Photovo

STGFW20H65FB General Description

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure. The device is part of the new HB series of IGBTs, which represents an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter. Furthermore, the sligh.

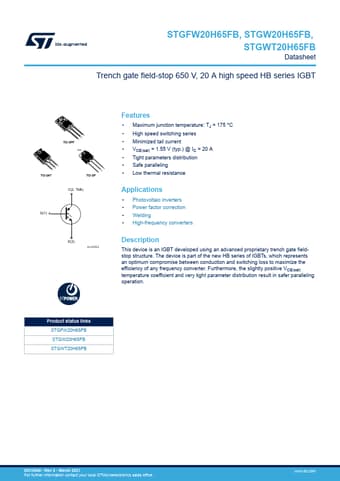

STGFW20H65FB Datasheet (451.82 KB)

STGFW20H65FB Datasheet Preview — Preview of STGFW20H65FB PDF

Datasheet Details

Part number:

STGFW20H65FB

Manufacturer:

STMicroelectronics ↗

File Size:

451.82 KB

Description:

Igbt.
STGFW20H65FB, STGW20H65FB, STGWT20H65FB Datasheet Trench gate field-stop 650 V, 20 A high speed HB series IGBT 1 TO-3PF 3 2 1 TAB 3 2 1 TO-247 3 .
