STGFW30V60DF - IGBT

STMicroelectronics

📥 Download Datasheet

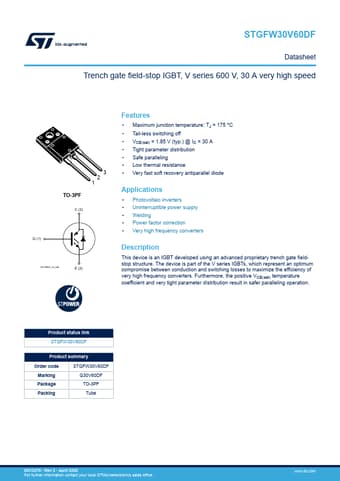

STGFW30V60DF Datasheet Preview — Preview of STGFW30V60DF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGFW30V60DF
Manufacturer	STMicroelectronics ↗
File Size	401.36 KB
Description	IGBT
Datasheet	STGFW30V60DF-STMicroelectronics.pdf

STGFW30V60DF Product details

Description

This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

Features

Maximum junction temperature: TJ = 175 °C.
Tail-less switching off.
VCE(sat) = 1.85 V (typ. ) @ IC = 30 A.
Tight parameter distribution.
Safe paralleling.
Low thermal resistance.
Very fast soft recovery antiparallel diode.
