STGFW40H65FB

IGBT

STGFW40H65FB Features

* Maximum junction temperature: TJ = 175 °C

* High speed switching series

* Minimized tail current

* Very low saturation voltage: VCE(sat) = 1.6 V (typ) @ IC = 40 A

* Safe paralleling

* Tight parameter distribution

* Low thermal resistance Appl

STGFW40H65FB General Description

These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure. These devices are part of the new HB series of IGBTs, which represent an optimum compromise between conduction and switching loss to maximize the efficiency of any frequency converter. Furthermore, the .

STGFW40H65FB Datasheet (449.61 KB)

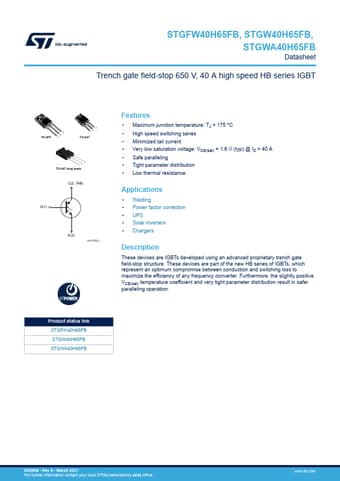

Preview of STGFW40H65FB PDF

Datasheet Details

Part number:

STGFW40H65FB

Manufacturer:

STMicroelectronics ↗

File Size:

449.61 KB

Description:

Igbt.
STGFW40H65FB, STGW40H65FB, STGWA40H65FB Datasheet Trench gate field-stop 650 V, 40 A high speed HB series IGBT TO-3PF 3 2 1 3 12 TO-247 3 12 TO-24.
