STGFW40V60DF - Trench gate field-stop IGBT

STMicroelectronics

📥 Download Datasheet

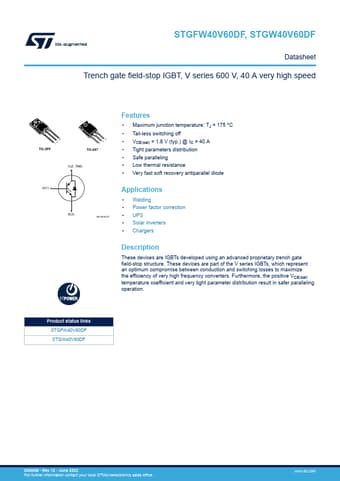

STGFW40V60DF Datasheet Preview — Preview of STGFW40V60DF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGFW40V60DF
Manufacturer	STMicroelectronics ↗
File Size	598.37 KB
Description	Trench gate field-stop IGBT
Datasheet	STGFW40V60DF-STMicroelectronics.pdf

STGFW40V60DF Product details

Description

These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure.

Features

Maximum junction temperature: TJ = 175 °C.
Tail-less switching off.
VCE(sat) = 1.8 V (typ. ) @ IC = 40 A.
Tight parameters distribution.
Safe paralleling.
Low thermal resistance.
Very fast soft recovery antiparallel diode G(1) E(3) NG1E3C2T.
