STGFW40V60F, STGB40V60F Datasheet - STMicroelectronics

STGFW40V60F IGBT

These devices are IGBTs developed using an advanced proprietary trench gate field-stop structure. These devices are part of the V series IGBTs, which represent an optimum compromise between conduction and switching losses to maximize the efficiency of very high frequency converters. Furthermore, the.

STGFW40V60F Features

* Maximum junction temperature: TJ = 175 °C

* Tail-less switching off

* VCE(sat) = 1.8 V (typ.) @ IC = 40 A

* Tight parameters distribution

* Safe paralleling

* Low thermal resistance Applications

* Welding

* Power factor correction

STGB40V60F-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STGFW40V60F, STGB40V60F. Please refer to the document for exact specifications by model.

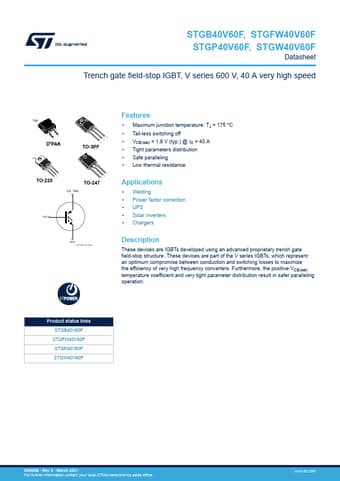

STGFW40V60F Datasheet Preview Page 2 STGFW40V60F Datasheet Preview Page 3

Datasheet Details

Part number:

STGFW40V60F, STGB40V60F

Manufacturer:

STMicroelectronics ↗

File Size:

671.80 KB

Description:

Igbt.

Note:

This datasheet PDF includes multiple part numbers: STGFW40V60F, STGB40V60F.
Please refer to the document for exact specifications by model.
