STGFW35HF60W - Ultrafast IGBT

STMicroelectronics

STGFW35HF60W Datasheet Preview — Preview of STGFW35HF60W PDF

Datasheet Details

Part number	STGFW35HF60W
Manufacturer	STMicroelectronics ↗
File Size	367.57 KB
Description	Ultrafast IGBT
Datasheet	STGFW35HF60W-STMicroelectronics.pdf

STGFW35HF60W Product details

Description

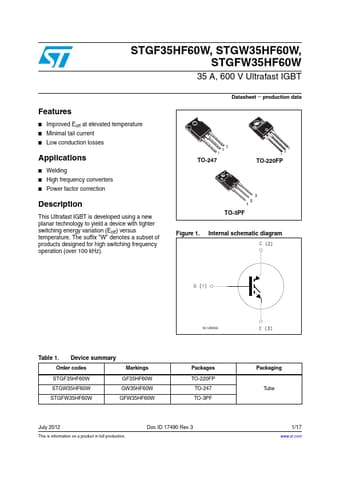

This Ultrafast IGBT is developed using a new planar technology to yield a device with tighter switching energy variation (Eoff) versus temperature. production data 3 2 1 TO-247 3 2 1 TO-220FP 1 3 2 1 TO-3PF Figure 1. Internal schematic diagram Table 1. Device summary Order codes Markings STGF35HF60W GF35HF60W STGW35HF60W GW35HF60W STGFW35HF60W GFW35HF60W P

Features

Improved Eoff at elevated temperature.
Minimal tail current.
Low conduction losses.
