STL2N80K5 - N-channel Power MOSFET

STMicroelectronics

The STL2N80K5 by STMicroelectronics is a N-channel Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STL2N80K5
Manufacturer	STMicroelectronics
File Size	0.97 MB
Description	N-channel Power MOSFET
Datasheet	STL2N80K5-STMicroelectronics.pdf

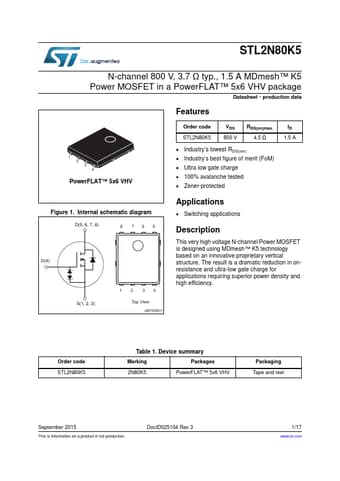

Additional preview pages of the STL2N80K5 datasheet.

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

1 2 3 4 PowerFLAT™ 5x6 VHV Order code STL2N80K5 VDS 800 V RDS(on)max. 4.5 Ω.
Industry’s lowest RDS(on).
Industry’s best figure of merit (FoM).
Ultra low gate charge.
100% avalanche tested.
Zener-protected ID 1.5 A Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View AM15540v1.
