STPSC20H065CWLY Datasheet - STMicroelectronics

STPSC20H065CWLY Automotive 20A 650V power Schottky silicon carbide diode

The STPSC20H065CWLY is an ultra-high-performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing .

STPSC20H065CWLY Features

* AEC-Q101 qualified

* PPAP capable

* No or negligible reverse recovery

* Switching behavior independent of temperature

* Dedicated to PFC applications

* High forward surge capability

* ECOPACK2 compliant component Applications

* On boa

STPSC20H065CWLY Datasheet (249.48 KB)

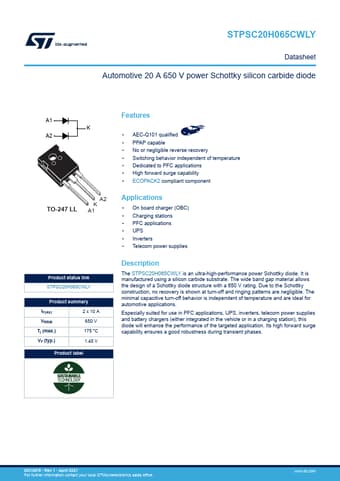

Preview of STPSC20H065CWLY PDF

Datasheet Details

Part number:

STPSC20H065CWLY

Manufacturer:

STMicroelectronics ↗

File Size:

249.48 KB

Description:

Automotive 20a 650v power schottky silicon carbide diode.
