STPSC30G12

30A power Schottky high surge silicon carbide diode

STPSC30G12 Features

* None or negligible reverse recovery

* Switching behavior independent of temperature

* Robust high voltage periphery

* Operating Tj from -55 °C to 175 °C

* Avalanche energy rated

* ECOPACK2 compliant component Applications

* Solar inverter

STPSC30G12 General Description

The SiC diode, available in DO-247 with long leads, is an ultrahigh performance power Schottky rectifier. It is manufactured using a silicon carbide substrate. The wide band-gap material allows the design of a low VF Schottky diode structure with a 1200 V rating. Thanks to the Schottky construction,.

STPSC30G12 Datasheet (486.61 KB)

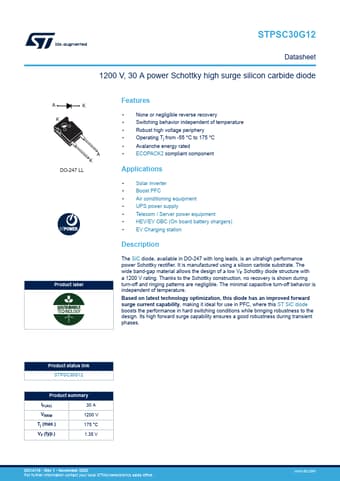

Preview of STPSC30G12 PDF

Datasheet Details

Part number:

STPSC30G12

Manufacturer:

STMicroelectronics ↗

File Size:

486.61 KB

Description:

30a power schottky high surge silicon carbide diode.
