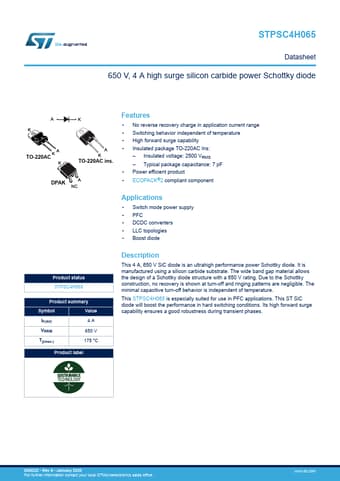

STPSC4H065 Datasheet, Diode, STMicroelectronics

✔ STPSC4H065 Features

No reverse recovery charge in application current range
Switching behavior independent of temperature
High forward surge capability
Insulated package TO-220AC Ins

✔ STPSC4H065 Application

Switch mode power supply
PFC
DCDC converters
LLC topologies
Boost diode Product status STPSC4H065

PDF File Details

STMicroelectronics manufacturer logo

Part number:

STPSC4H065

Manufacturer:

STMicroelectronics ↗

File Size:

317.48kb

Download:

📄 Datasheet

Description:

4a high surge silicon carbide power schottky diode. This 4 A, 650 V SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The

📥 Download PDF (317.48kb)
