STPSC8H065

650V 8A high surge silicon carbide power Schottky diode

STPSC8H065 Features

* No reverse recovery charge in application current range

* Switching behavior independent of temperature

* High forward surge capability

* Insulated package TO-220AC Ins:

* Insulated voltage: 2500 VRMS

* Typical package capacitance: 7 pF

* Pow

STPSC8H065 General Description

This 8 A, 650 V SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and rin.

STPSC8H065 Datasheet (360.06 KB)

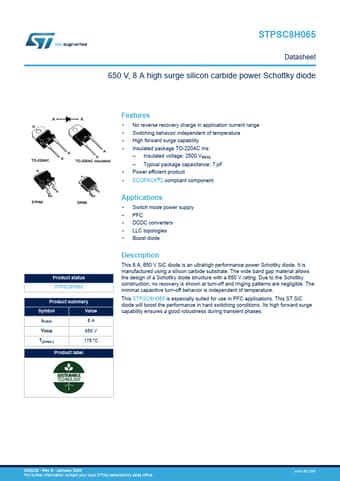

Preview of STPSC8H065 PDF

Datasheet Details

Part number:

STPSC8H065

Manufacturer:

STMicroelectronics ↗

File Size:

360.06 KB

Description:

650v 8a high surge silicon carbide power schottky diode.
STPSC8H065 Datasheet 650 V, 8 A high surge silicon carbide power Schottky diode A K K TO-220AC K A K A K TO-220AC insulated K D²PAK A NC DPAK.
