STPSC8H065-Y Datasheet, Diode, STMicroelectronics

STPSC8H065-Y Features

  • Diode
  • AEC-Q101 qualified
  • No reverse recovery charge in application current range
  • Switching behavior independent of temperature
  • Recommended to PFC appli

PDF File Details

Part number:

STPSC8H065-Y

Manufacturer:

STMicroelectronics ↗

File Size:

401.81kb

Download:

📄 Datasheet

Description:

Automotive 650v 8a high surge silicon carbide power schottky diode. The SiC diode is an ultra-high performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band

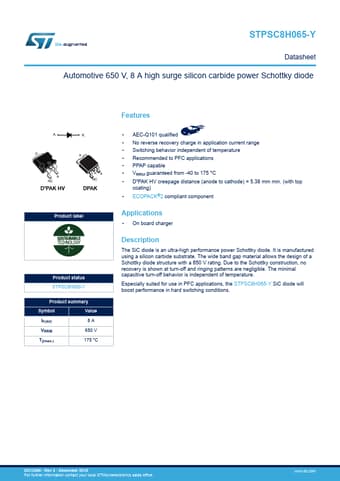

Datasheet Preview: STPSC8H065-Y 📥 Download PDF (401.81kb)
Page 2 of STPSC8H065-Y Page 3 of STPSC8H065-Y

STPSC8H065-Y Application

  • Applications
  • PPAP capable
  • VRRM guaranteed from -40 to 175 °C
  • D²PAK HV creepage distance (anode to cathode) = 5.38 mm m
