STTH16L06CFP Datasheet, Rectifier, STMicroelectronics

STTH16L06CFP Features

  • Rectifier
  • Ultrafast switching
  • Low reverse recovery current
  • Reduces switching and conduction losses
  • Low thermal resistance Description The STTH16L06, which

PDF File Details

Part number:

STTH16L06CFP

Manufacturer:

STMicroelectronics ↗

File Size:

117.32kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH16L06, which is using ST Turbo 2 600 V technology, is specially suited for use in switching power supplies, and industrial ap

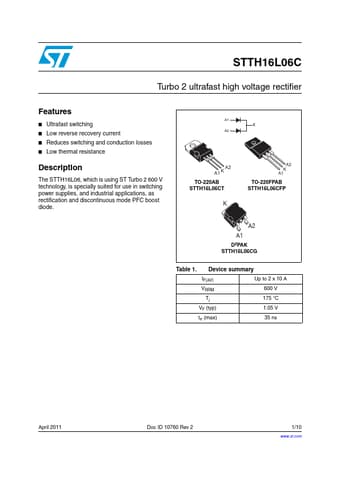

Datasheet Preview: STTH16L06CFP 📥 Download PDF (117.32kb)
Page 2 of STTH16L06CFP Page 3 of STTH16L06CFP

STTH16L06CFP Application

  • Applications as rectification and discontinuous mode PFC boost diode. A1 K A2 A2 A1 K TO-220AB STTH16L06CT K A2 K A1 TO-220FPAB STTH16L06CFP A2
