K7P323688M 1Mx36 & 2Mx18 SRAM

Pin Name K, K SAn DQn SS SW SWa SWb SWc SWd M 1 , M2 G Pin Description Differential Clocks Synchronous Address Input Bi-directional Data Bus Synchronous Select Synchronous Global Write Enable Synchronous Byte a Write Enable Synchronous Byte b Write Enable Synchronous Byte c Write Enable Synchronous .

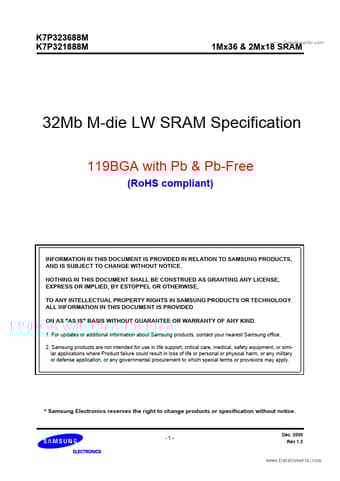

K7P323688M K7P321888M 1Mx36 & 2Mx18 SRAM www.DataSheet4U.com 32Mb M-die LW SRAM Specification 119BGA with Pb & Pb-Free (RoHS compliant) INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" .

K7P323688M Features

* 1Mx36 or 2Mx18 Organizations.

* 1.8V VDD/1.5V or 1.8V VDDQ.

* HSTL Input and Output Levels.

* Differential, HSTL Clock Inputs K, K.

* Synchronous Read and Write Operation

* Registered Input and Registered Output

* Internal Pipeline Latches to
