2SB1454 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • Low collector-to-emitter saturation voltage.
  • Large current capacity.
  • Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1454/2SD2202] ( ) : 2SB1454 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Ju.

📥 Download Datasheet

Datasheet preview – 2SB1454

Datasheet Details

Part number 2SB1454
Manufacturer Sanyo Semicon Device
File Size 152.29 KB
Description PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SB1454 Datasheet
Additional preview pages of the 2SB1454 datasheet.

📁 Similar Datasheet

  • 2SB1454 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1454 - PNP Transistor (INCHANGE)
  • 2SB1453 - PNP SILICON EPITAXIAL POWER TRANSISTOR (NEC)
  • 2SB1455 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1455 - PNP Transistor (INCHANGE)
  • 2SB1457 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1400 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1400 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1400 - PNP Transistor (INCHANGE)
  • 2SB1401 - Low frequency power amplifier (Hitachi)
Other Datasheets by Sanyo Semicon Device
  • 2SB1450 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SB1451 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SB1452 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SB1455 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SB1405 - PNP Epitaxial Silicon Transistor
  • 2SB1406 - PNP Epitaxial Planar Silicon Darlington Transistor
  • 2SB1449 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SB1467 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

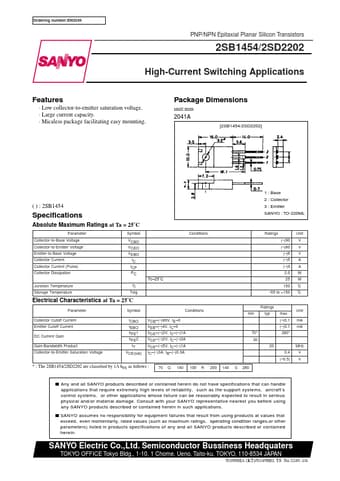

Ordering number:EN3249 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1454/2SD2202 High-Current Switching Applications Features · Low collector-to-emitter saturation voltage. · Large current capacity. · Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1454/2SD2202] ( ) : 2SB1454 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC ICP PC Tj Tstg Tc=25˚C (–)90 (–)80 (–)6 (–)5 (–)9 2.
