2SD2581 - NPN Triple Diffused Planar Silicon Transistor

2SD2581 Description

Ordering number:5818 NPN Triple Diffused Planar Silicon Transistor 2SD2581 Color TV Horizontal Deflection Output Applications .

2SD2581 Features

* High speed.
* High breakdown voltage (VCBO=1500V).
* High reliability (Adoption of HVP process).
* Adoption of MBIT process. Package Dimensions unit:mm 2039D [2SD2581] 3.4 16.0 5.6 3.1 5.0 8.0 21.0 22.0 2.8 2.0 4.0 2.0 20.4 1.0 0.6 1 2 3 2.0 1:Base 2:Collector 3:Emitte

📥 Download Datasheet

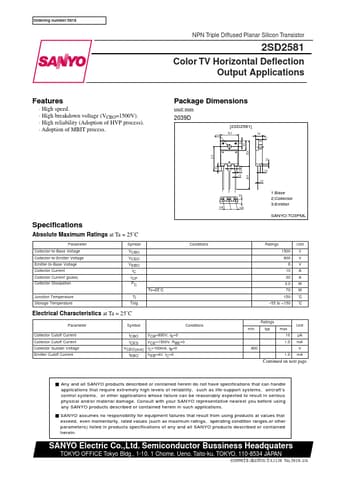

Preview of 2SD2581 PDF
