2SD2578 - NPN Triple Diffused Planar Silicon Transistor

2SD2578 Description

Ordering number:5794 NPN Triple Diffused Planar Silicon Transistor 2SD2578 Color TV Horizontal Deflection Output Applications .

2SD2578 Features

* High speed.
* High breakdown voltage (VCBO=1500V).
* High reliability (Adoption of HVP process).
* Adoption of MBIT process.
* On-chip damper diode. Package Dimensions unit:mm 2039D [2SD2578] 3.4 16.0 5.6 3.1 5.0 8.0 21.0 22.0 2.8 2.0 4.0 2.0 20.4 1.0 0.6 2.0 1 2 3 1:

📥 Download Datasheet

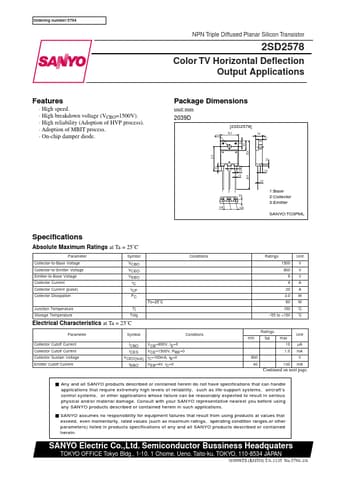

Preview of 2SD2578 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2578
Manufacturer
Sanyo Semicon Device
File Size
45.03 KB
Datasheet
2SD2578_SanyoSemiconDevice.pdf
Description
NPN Triple Diffused Planar Silicon Transistor
