2SD2571 Silicon NPN Transistor

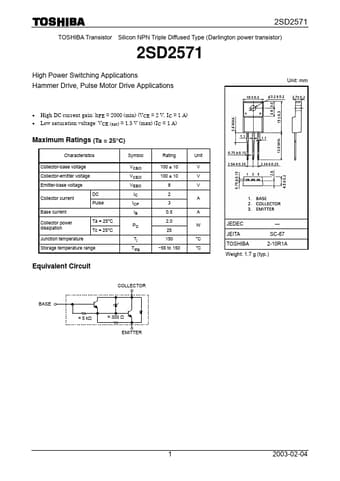

2SD2571 TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington power transistor) 2SD2571 High Power Switching Applications Hammer Drive, Pulse Motor Drive Applications Unit: mm High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A) Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1 A) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current DC Pulse Base current Collector power .
