2SD2586 Datasheet - Toshiba Semiconductor

2SD2586 Silicon NPN Transistor

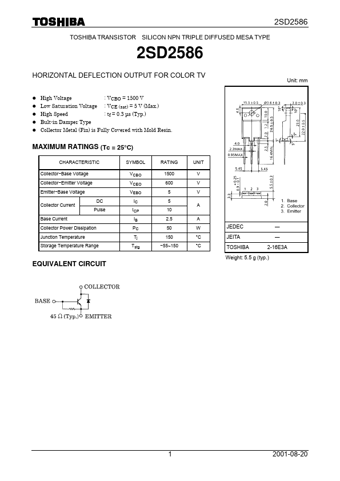

2SD2586 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SD2586 HORIZONTAL DEFLECTION OUTPUT FOR COLOR TV l High Voltage : VCBO = 1500 V l Low Saturation Voltage : VCE (sat) = 5 V (Max.) l High Speed : tf = 0.3 µs (Typ.) l Bult-in Damper Type l Collector Metal (Fin) is Fully Covered with Mold Resin. MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current DC Pulse Base Curre.
