2SD2688LS - NPN Triple Diffused Planar Silicon Transistor

2SD2688LS Description

Ordering number : ENN7526 2SD2688LS NPN Triple Diffused Planar Silicon Transistor 2SD2688LS Color TV Horizontal Deflection Output Applications Featu.

2SD2688LS Features

* Package Dimensions unit : mm 2079D [2SD2688LS] 10.0 3.2 3.5 7.2 High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Adoption of MBIT process. On-chip damper diode. 4.5 2.8 16.1 16.0 3.6 0.9 1.2 14.0 1.

📥 Download Datasheet

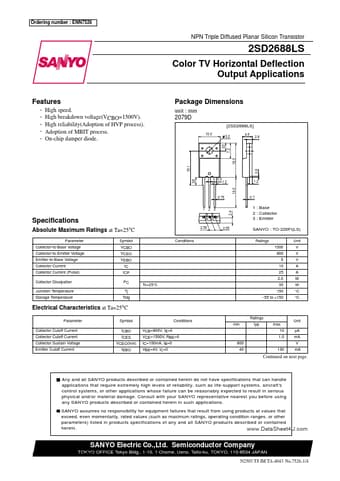

Preview of 2SD2688LS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2688LS
Manufacturer
Sanyo Semicon Device
File Size
60.53 KB
Datasheet
2SD2688LS_SanyoSemiconDevice.pdf
Description
NPN Triple Diffused Planar Silicon Transistor
