2SD2689LS

NPN Triple Diffused Planar Silicon Transistor

2SD2689LS Features

* Package Dimensions unit : mm 2079D [2SD2689LS] 10.0 3.2 3.5 7.2 High speed. High breakdown voltage(VCBO=1500V). High reliability(Adoption of HVP process). Adoption of MBIT process. 4.5 2.8 16.1 16.0 3.6 0.9 1.2 14.0 1.2 0.75 1 2 3 0.7 Specificatio

2SD2689LS Datasheet (63.55 KB)

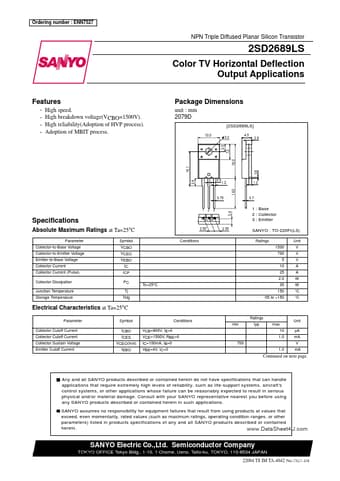

Preview of 2SD2689LS PDF

Datasheet Details

Part number:

2SD2689LS

Manufacturer:

Sanyo Semicon Device

File Size:

63.55 KB

Description:

Npn triple diffused planar silicon transistor.
Ordering number : ENN7527 2SD2689LS NPN Triple Diffused Planar Silicon Transistor 2SD2689LS Color TV Horizontal Deflection Output Applications Featu.
