HFP13N50U - N-Channel MOSFET

Product Overview

SemiHow

Part number	HFP13N50U
Manufacturer	SemiHow
File Size	164.48 KB
Description	N-Channel MOSFET
Datasheet	HFP13N50U Datasheet

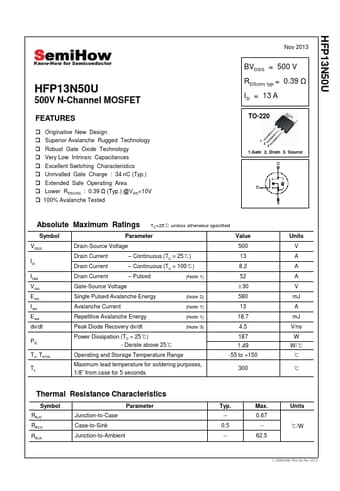

Additional preview pages of the HFP13N50U datasheet.

Originative New Design Superior Avalanche Rugged Technology Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 34 nC (Typ. ) Extended Safe Operating Area Lower RDS(ON) : 0.39 ȍ7S#9GS=10V 100% Avalanche Tested Nov 2013 BVDSS = 500 V RDS(on) typ = 0.39 ȍ ID = 13 A TO-220 1 23 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EA.
