HFP13N50S - N-Channel MOSFET

Product Overview

SemiHow

Part number	HFP13N50S
Manufacturer	SemiHow
File Size	166.80 KB
Description	N-Channel MOSFET
Datasheet	HFP13N50S Datasheet

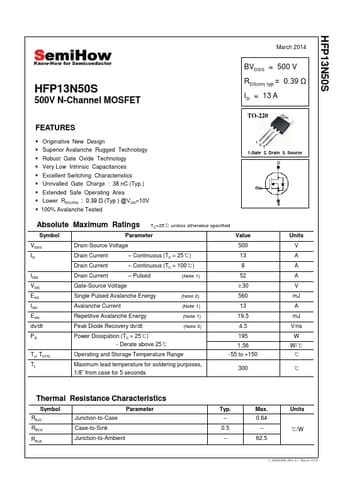

Additional preview pages of the HFP13N50S datasheet.

Originative New Design.
Superior Avalanche Rugged Technology.
Robust Gate Oxide Technology.
Very Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Unrivalled Gate Charge : 38 nC (Typ. ).
Extended Safe Operating Area.
Lower RDS(ON) ȍ7S#9GS=10V.
100% Avalanche Tested TO-220 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings TC=25୅ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv/dt.
