SVSP7N70FD2

700V DP MOS POWER TRANSISTOR

Silan Microelectronics

SVSP7N70FD2 Features

* 7A, 700V, RDS(on)(typ.)=0.52@VGS=10V

* New revolutionary high voltage technology

* Ultra low gate charge

* Periodic avalanche rated

* Extreme dv/dt rated

* High peak current capability NOMENCLATURE 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L 1 2 3 TO-220FJD-3L 1 3 TO-263

SVSP7N70FD2 General Description

2 SVSP7N70F(D)(S)(FJD)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DP MOS technology. It achieves low conduction loss and switching losses. It leads the design engineers to their power converters with high efficiency, high power density, and superior therma.

SVSP7N70FD2 Datasheet (398.90 KB)

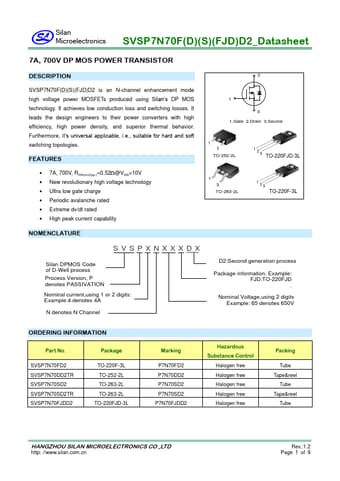

SVSP7N70FD2 Datasheet Preview — Preview of SVSP7N70FD2 PDF

Datasheet Details

Part number:

SVSP7N70FD2

Manufacturer:

Silan Microelectronics

File Size:

398.90 KB

Description:

700v dp mos power transistor.
