SVSP7N70SD2, SVSP7N70FD2 700V DP MOS POWER TRANSISTOR

SVSP7N70SD2 Description

Silan Microelectronics SVSP7N70F(D)(S)(FJD)D2_Datasheet 7A, 700V DP MOS POWER TRANSISTOR .
2 SVSP7N70F(D)(S)(FJD)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DP MOS technology.

SVSP7N70SD2 Features

* 7A, 700V, RDS(on)(typ. )=0.52@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability NOMENCLATURE 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L 1 2 3 TO-220FJD-3L 1 3 TO-263

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVSP7N70SD2, SVSP7N70FD2. Please refer to the document for exact specifications by model.

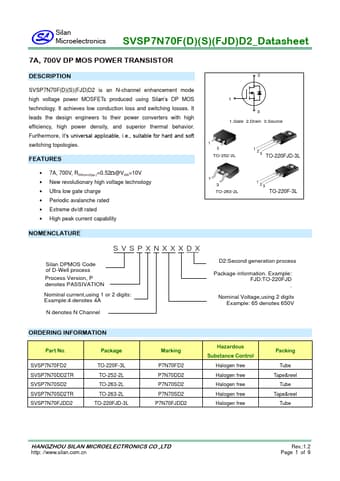

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVSP7N70SD2, SVSP7N70FD2
Manufacturer
Silan Microelectronics
File Size
398.90 KB
Datasheet
SVSP7N70FD2-SilanMicroelectronics.pdf
Description
700V DP MOS POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: SVSP7N70SD2, SVSP7N70FD2.
Please refer to the document for exact specifications by model.
