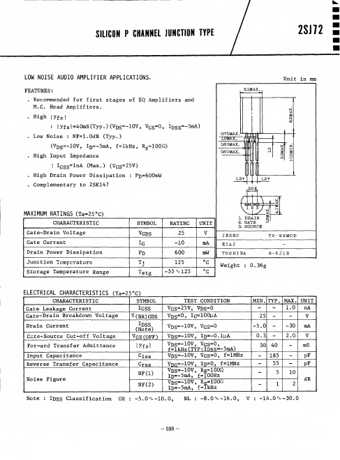

Part number:
2SJ72
Manufacturer:
Toshiba ↗ Semiconductor
File Size:
115.11 KB
Description:
Silicon p-channel transistor.
* . Recommended for first stages of EQ Amplifiers and M.C. Head Amplifiers.
* High jy fs ) : |yfsl=40mS(Typ.)(VDS =-10V, VGS=0, IDSS=-5mA) . Low Noise : NF=1.0dB (Typ.) (VDS =-10V, ID=-5mA, f=lkHz, Rg=100ft) . High Input Impedance : I GSS =lnA (Max.) (V GS=25V) . High Drain Power Dissipation :
2SJ72
Toshiba ↗ Semiconductor
115.11 KB
Silicon p-channel transistor.
