2SJ74 Datasheet - Toshiba Semiconductor

2SJ74 Silicon P-Channel Transistor

TOSHIBA Field Effect Transistor Silicon P Channel Junction Type 2SJ74 2SJ74 Low Noise Audio Amplifier Applications Unit: mm Recommended for first stages of EQ amplifiers and M.C. head amplifiers. High |Yfs|: |Yfs| = 22 mS (typ.) (VDS = 10 V, VGS = 0, IDSS = 3 mA) Low noise: En = 0.95 nV/Hz1/2 (typ.) (VDS = 10 V, ID = 1 mA, f = 1 kHz) High input impedance: IGSS = 1.0 nA (max) (VGS = 25 V) Complimentary to 2S.

2SJ74 Datasheet (327.18 KB)

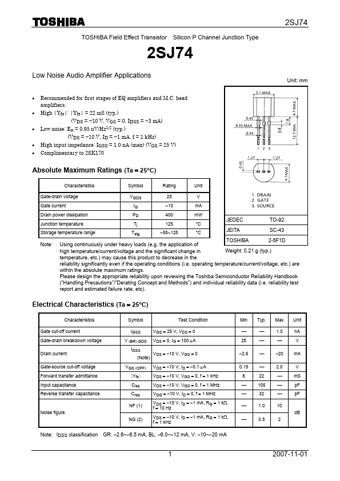

Preview of 2SJ74 PDF

Datasheet Details

Part number:

2SJ74

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

327.18 KB

Description:

Silicon p-channel transistor.
