SSM3J332R Datasheet - Toshiba Semiconductor

SSM3J332R Silicon P-Channel MOSFET

SSM3J332R TOSHIBA Field-Effect Transistor Silicon P-Channel MOS Type (U-MOSVI) SSM3J332R ○Power Management Switch Applications 1.8-V drive Low ON-resistance: RDS(ON) = 144 mΩ (max) (@VGS = -1.8 V) RDS(ON) = 72.0 mΩ (max) (@VGS = -2.5 V) RDS(ON) = 50.0 mΩ (max) (@VGS = -4.5 V) RDS(ON) = 42.0 mΩ (max) (@VGS = -10 V) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Drain-Source voltage VDSS -30 V Gate-Source voltage VGSS ± 12 V Drai.

SSM3J332R-ToshibaSemiconductor.pdf

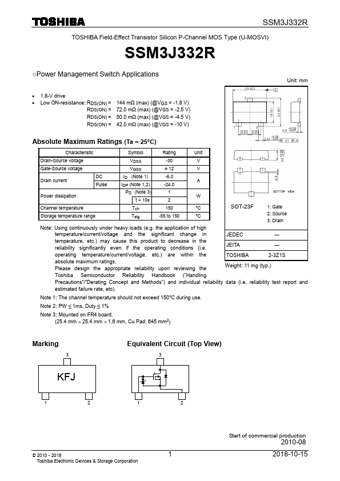

Preview of SSM3J332R PDF
SSM3J332R Datasheet Preview Page 2 SSM3J332R Datasheet Preview Page 3

Datasheet Details

Part number:

SSM3J332R

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

345.17 KB

Description:

Silicon p-channel mosfet.
