TK10A60D Datasheet - Toshiba

TK10A60D N-Channel MOSFET

TK10A60D TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ) TK10A60D Switching Regulator Applications Unit: mm Low drain-source ON-resistance: RDS (ON) = 0.62 Ω (typ.) High forward transfer admittance: |Yfs| = 6.0 S (typ.) Low leakage current: IDSS = 10 μA (VDS = 600 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Drain-gate voltage (RGS = 20 kΩ) .

TK10A60D Features

* t used in the aerospace industry, medical equi

TK10A60D_Toshiba.pdf

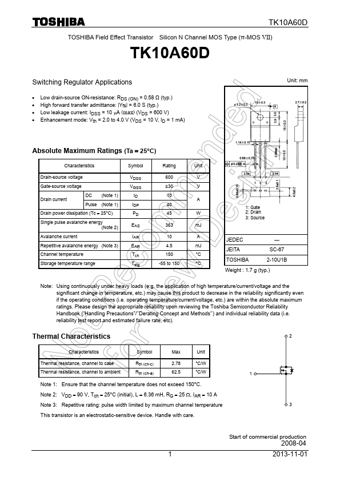

Preview of TK10A60D PDF
TK10A60D Datasheet Preview Page 2 TK10A60D Datasheet Preview Page 3

Datasheet Details

Part number:

TK10A60D

Manufacturer:

Toshiba ↗

File Size:

253.47 KB

Description:

N-channel mosfet.
