TK20S04K3L - Silicon N-Channel MOSFET

Name: TK20S04K3L
SKU: TK20S04K3L-742965

Toshiba

The TK20S04K3L by Toshiba is a Silicon N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TK20S04K3L
Manufacturer	Toshiba
File Size	261.72 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK20S04K3L_Toshiba.pdf

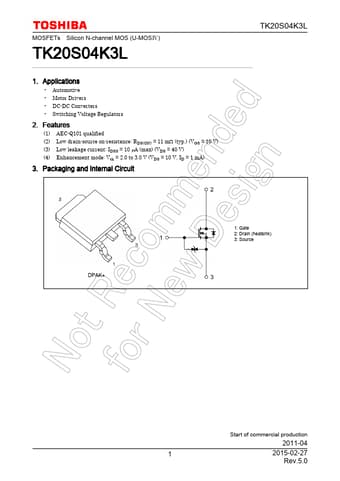

Additional preview pages of the TK20S04K3L datasheet.

(1) AEC-Q101 qualified (2) Low drain-source on-resistance: RDS(ON) = 11 mΩ (typ. ) (VGS = 10 V) (3) Low leakage current: IDSS = 10 µA (max) (VDS = 40 V) (4) Enhancement mode: Vth = 2.0 to 3.0 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit TK20S04K3L DPAK+ 1: Gate 2: Drain (heatsink) 3: Source Start of commercial production 2011-04 1 2015-02-27 Rev.5.0 TK20S04K3L 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Symbol Rating Unit D.
