TSF2N70M

N-Channel MOSFET

TSF2N70M Features

* 2.0A,700V,Max.RDS(on)=7.00 Ω @ VGS =10V

* Low gate charge(typical 9nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

TSF2N70M General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

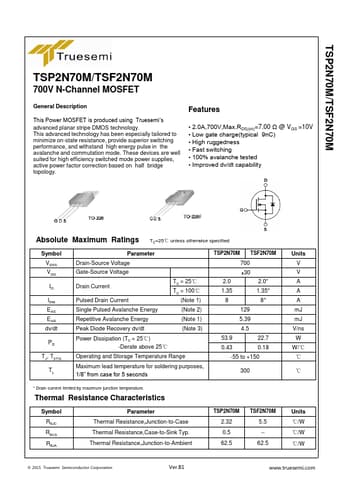

TSF2N70M Datasheet (572.32 KB)

Preview of TSF2N70M PDF

Datasheet Details

Part number:

TSF2N70M

Manufacturer:

Truesemi

File Size:

572.32 KB

Description:

N-channel mosfet.
